Dual SDI Encoder with Display Port - DME-20

DME-20

Dual SDI Encoder with Display Port

DME-20

Features

  • H.265, H.264 and MJPEG Encoding
  • Easy to Use HTTP Based Control Interface
  • Small Form Factor
  • Closed Captions EIA608 & EIA708

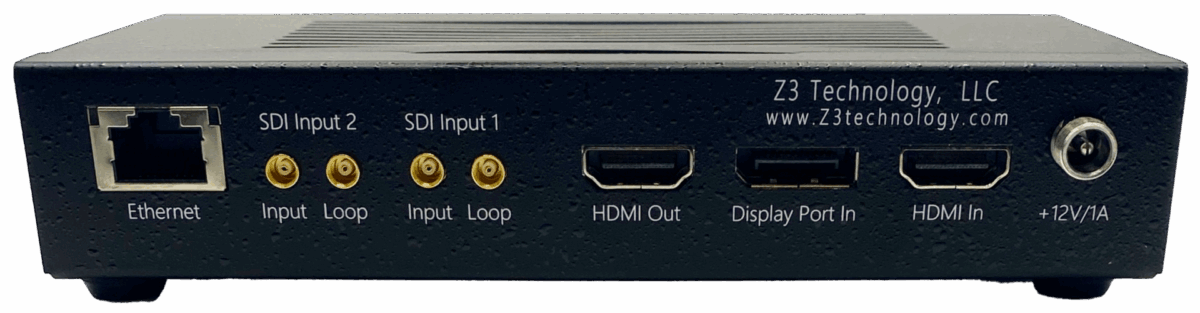

  • 2 x 3G-SDI Input and Loop Through
  • 4K HDMI Input
  • Display Port Input
  • STANAG 4609 Compliant
  • KLV Metadata Support via SDI or Serial, MISB 0601 Compliant
  • High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant
  • SRT Support
  • AES-128,192, 256 Encryption
  • AI Ready Video Encoder!

Specifications

Codecs

  • H.264
  • H.265
  • MJPEG

Resolutions

  • Up to 4Kp30

Applications

  • IP Streaming

Request More Information

Overview

The DME-20 is a compact video encoder which supports up to 2160p30 H.265 encode in streaming or storage mode. These combined features create an ideal platform for broadcast, medical imaging, event streaming, industrial video or Military applications with low-latency and low bit-rate streaming.  This powerful STNAG 4609 compliant production-ready HD and 4K encoder offers the latest technology for powerful streaming with KLV Metadata Capabilities.
