Compact HDMI 4Kp60 Encoder

ZCube-60

Features

Low latency, Low power
Cyber Secure Features Available
Simultaneous Encode of H.265/HEVC and H.264
Control via HTTP/HTTPS Web GUI, API, ONVIF or SSH/Serial
Live Video Preview
Record to USB or Network File System
SRT Modes Supported: Caller Sender, Rendezvous, and SRT Encryption

Documentation

Data Sheet

Specifications

Cameras

HDMI

Codecs

H.264
H.265
MJPEG

Resolutions

Up to 4Kp60

Controls

Web User Interface, HTTP/S API, Serial/SSH, ONVIF or Video Management System

Compliance

ONVIF Profile S and T, FCC and CE, NDAA and TAA

Applications

Aerospace
Inspection
Medical
Robotics
Security
Surveillance
Unmanned Systems: UAV, UGV and USV

Request More Information

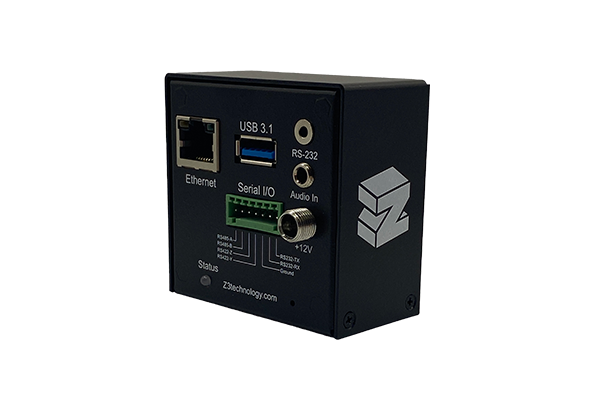

Overview

The ZCube-60 is a compact encoder system for streaming and recording of 4Kp60 video. It is a H.265/HEVC, H.264 and MJPEG video encoder designed for portable high quality streaming. It is capable of accepting 4Kp60 video or laptop VESA Resolutions and producing IP streams. The ZCube-60 features a secure locking HDMI input and a HDMI output for a monitor display while offering simultaneous streaming and recording.
