HDMI 4K H.265 Video Encoder - Z3 Technology

ZCube-21

Additional Images

Full-Size HDMI 4Kp30 H.265 Encoder

ZCube-21

Features

  • Low latency, Low Power
  • Simultaneous encode of H.265/HEVC and H.264
  • Easy-to-Use HTTP/HTTPS web GUI with live video preview
  • Power over Ethernet (PoE) 802.3af

Documentation

Data Sheet

Specifications

Codecs

  • H.264
  • H.265
  • MJPEG

Resolutions

  • Up to 4Kp30

Request More Information

Overview

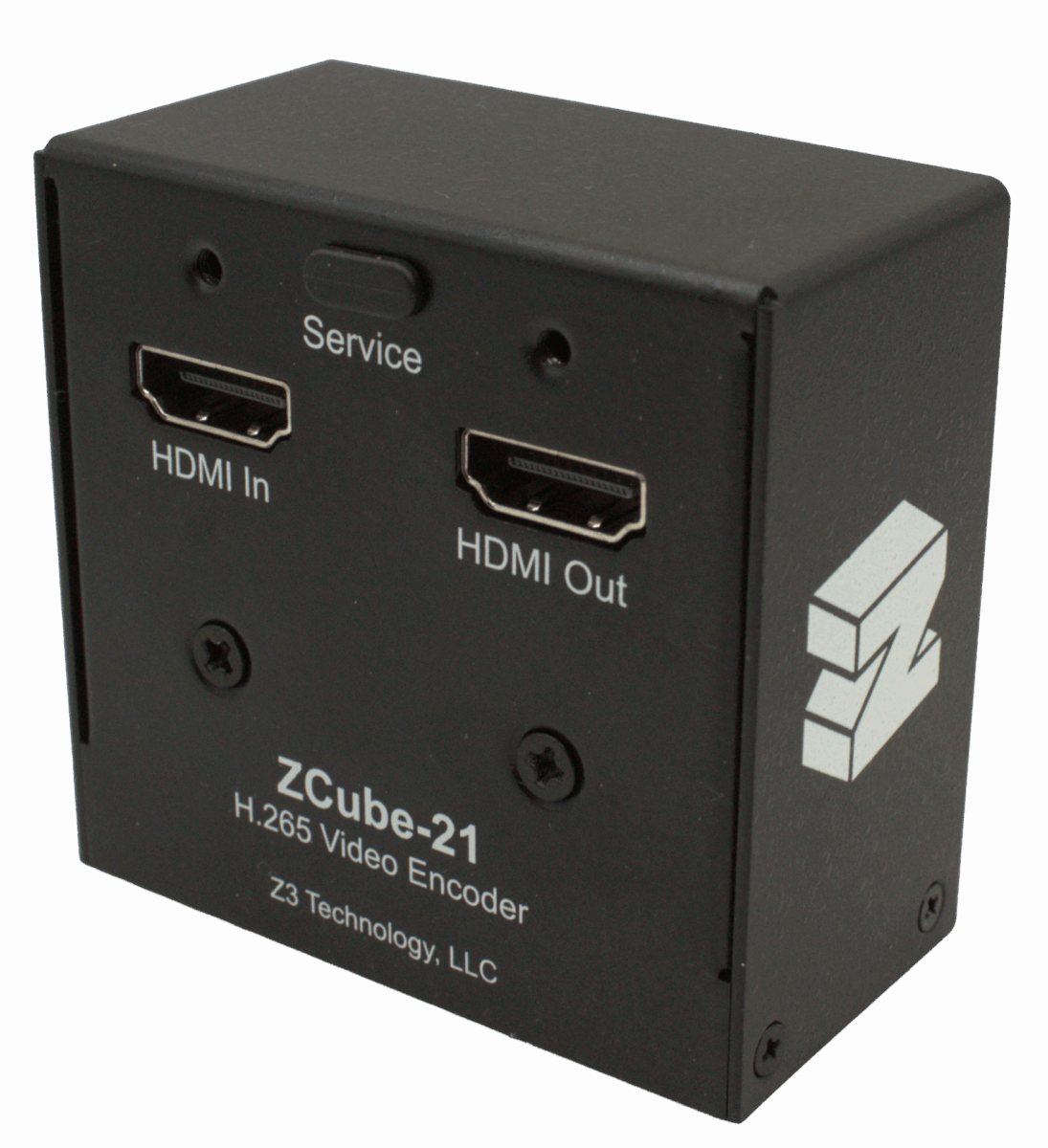

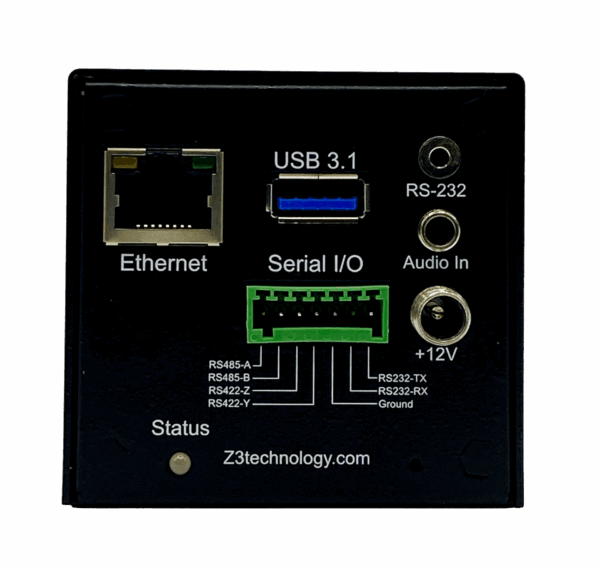

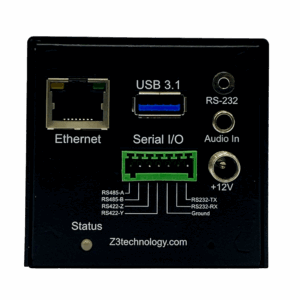

The ZCube-21™ is a compact encoder system. It is a H.265/HEVC, H.264 and MJPEG video encoder designed for easy and portable use. It is capable of accepting 4K video at 30 frames per second and producing IP streams that can be sent on a standard Ethernet cable. The hardware consists of encoder boards capable of encoding H.265/HEVC video in 4K and Ultra-HD resolutions. The ZCube-21 features on-board interfaces including Gigabit Ethernet, USB 3.1, Microphone Input and HDMI In/Out.
