Compact Dual Analog Encoder
ZCube-2C
Features
- Two Analog Inputs with BNC Connections
- H.265/H.264 Video Streaming
- Camera Controls over IP
- ONVIF® Profile S, T and M Compliant
- HDMI Video Monitor Output
Documentation
Specifications
Cameras
- Composite NTSC and PAL
Codecs
- H.264
- H.265
- MJPEG
Resolutions
- Up to 1080p60
Controls
- Web User Interface, HTTP/S API, Serial/SSH, ONVIF or Video Management System
Compliance
- ONVIF Profile S, T and M, FCC and CE, NDAA and TAA
Applications
- Industrial
- Military
- Security
- Surveillance
Overview

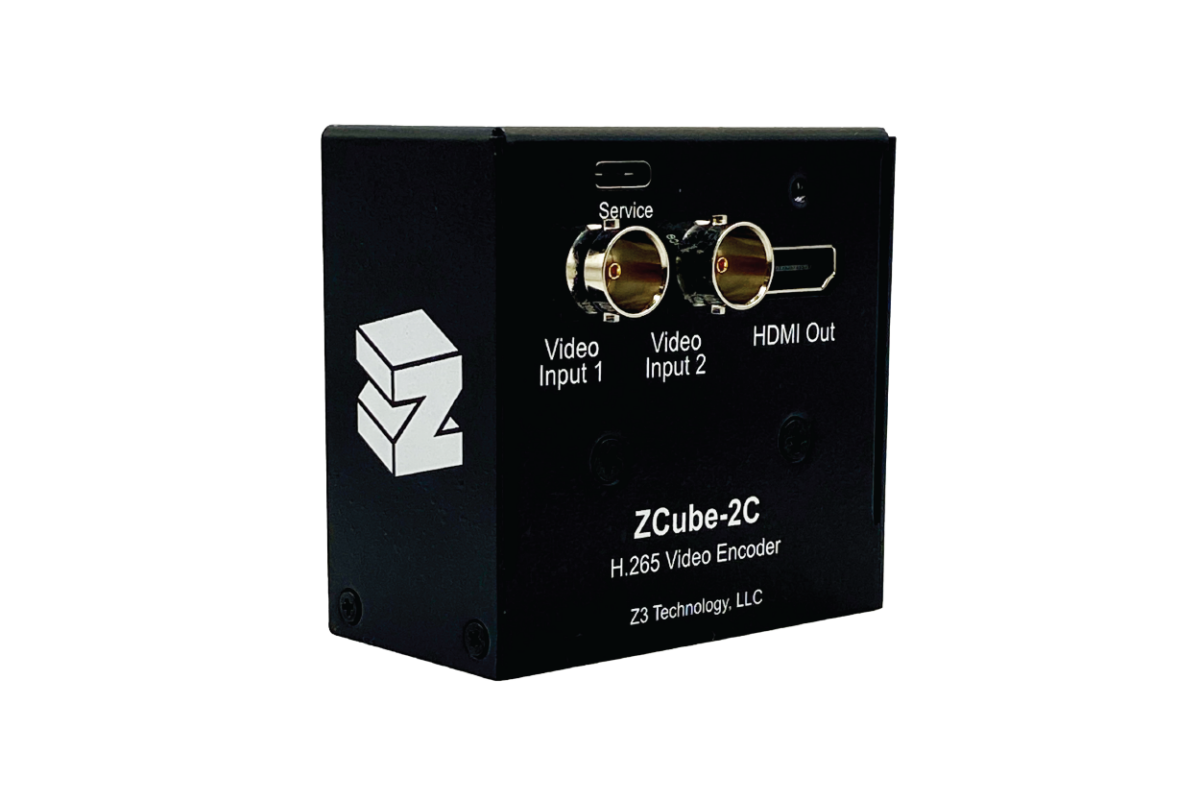

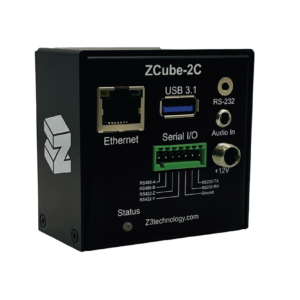

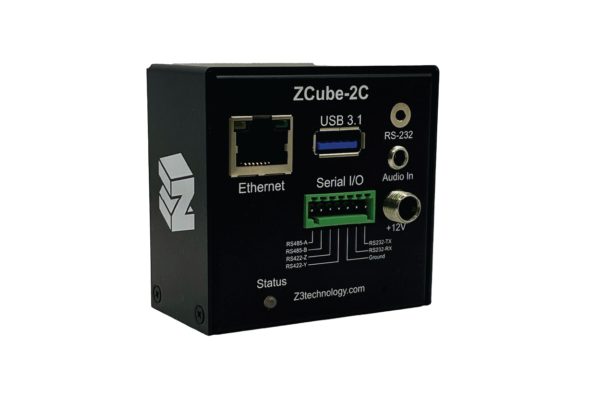

The ZCube-2C is a compact encoder system for streaming and recording of two analog video signals. It is a H.265/HEVC, H.264 and MJPEG video encoder designed for high quality streaming in bandwidth restricted environments. With our Serial I/O interface, the user may control accessory devices such as a GPS, PTZ Mount, or Range Finder. The ZCube-2C features a secure locking HDMI output for monitor display while simultaneously offering streaming and recording.
