LYNRED ATI640 Camera Interface Board
CIB-ATI640
Features
- Attaches to the LYNRED ATI640 Camera Body
- LVDS Digital Video Output
- MIPI CSI-2 Digital Video Output
- KEL Cable Connection to Z3 Single or Dual Camera Video Encoders
Documentation
Specifications
Applications
- Defense Video Solutions
- Inspection
- Security
- Surveillance
- Unmanned Systems
Overview

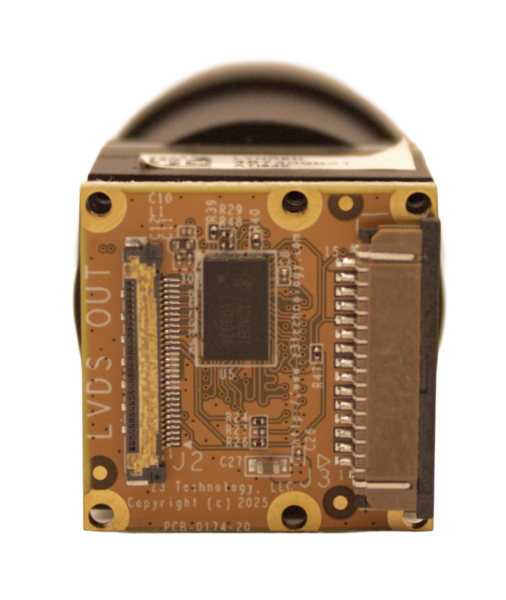

The CIB-ATI640 is a LYNRED ATI640 Camera Interface Board designed for seamless Z3 Encoder streaming integration and MIPI interfaces. The board mounts directly to the back of the LYNRED ATI640 camera, ensuring a precise mechanical fit. It supports both LVDS digital video and MIPI CSI-2 video output, enabling superior integration with Z3 Dual Camera Encoders, Single Camera Encoders, or MIPI Imaging Systems.
Optional Z3 Encoder integration is available via a single 30-pin KEL connection on the CIB-ATI640. This provides a single connection point for passing LVDS digital video to Z3 Video encoders, along with power, and bidirectional camera controls from Z3 video encoders to the ATI640. Pairing the CIB-ATI640 with Z3 Technology’s add-on Video Encoders allows developers to rapidly create a complete IP camera solution. Z3 Video Encoders feature H.265/H.264 or MJPEG streaming, flexible controls via the Encoder’s API, web GUI, or serial controls. Integrating Z3 Video Encoders offers access to Z3 Technology’s industry-leading, low-power video streaming encoders, providing ultra-low latency and exceptional video quality.
For dual camera encoder streaming solutions of IR and visible applications, see the recommended add-on products below. These include dual camera encoder options from the FSDI, FV2K, or FV4K. These pairings allow for a dual camera setup, with the ATI640 thermal camera and a visible camera of your choice, all controlled from a single encoder. For visible camera integration, select from various cameras, including Visible SDI, LVDS, or HDMI, supporting resolutions from SD to 4K, Ultra HD. The user can control the camera from the encoder, allowing for remote access to streaming and PTZ controls, while maintaining secure system access. For AI integrations, Z3 Technology offers multiple options to integrate edge analytics with available AI demos. The LYNRED ATI640 camera interface board also features a 15-pin MIPI connector, compatible with MIPI-based streaming or MIPI-compatible AI solutions.
